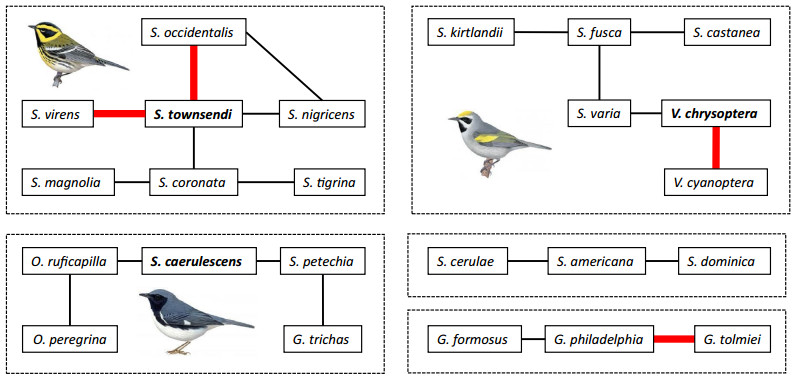

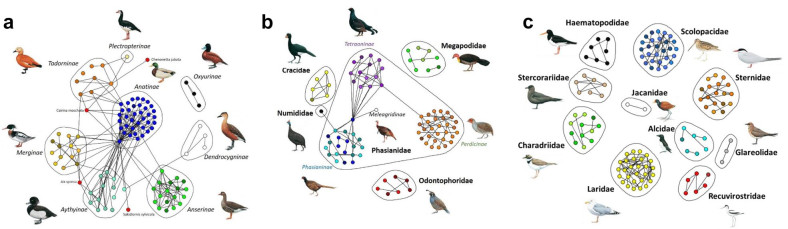

Hybridization is not always limited to two species; often multiple species are interbreeding. In birds, there are numerous examples of species that hybridize with multiple other species. The advent of genomic data provides the opportunity to investigate the ecological and evolutionary consequences of multispecies hybridization. The interactions between several hybridizing species can be depicted as a network in which the interacting species are connected by edges. Such hybrid networks can be used to identify 'hub-species' that interbreed with multiple other species. Avian examples of such 'hub-species' are Common Pheasant (Phasianus colchicus), Mallard (Anas platyrhynchos) and European Herring Gull (Larus argentatus). These networks might lead to the formulation of hypotheses, such as which connections are most likely conducive to interspecific gene flow (i.e. introgression). Hybridization does not necessarily result in introgression. Numerous statistical tests are available to infer interspecific gene flow from genetic data and the majority of these tests can be applied in a multispecies setting. Specifically, model-based approaches and phylogenetic networks are promising in the detection and characterization of multispecies introgression. It remains to be determined how common multispecies introgression in birds is and how often this process fuels adaptive changes. Moreover, the impact of multispecies hybridization on the build-up of reproductive isolation and the architecture of genomic landscapes remains elusive. For example, introgression between certain species might contribute to increased divergence and reproductive isolation between those species and other related species. In the end, a multispecies perspective on hybridization in combination with network approaches will lead to important insights into the history of life on this planet.
Vertebrates invest material and energy to build and maintain skeletons. From an evolutionary viewpoint, skeletons should be as economic as possible to minimize these costs, but weaker skeletal material is more susceptible to catastrophic failure. Rigorous tests of hypotheses concerning the balance between the resulting selective forces (Alexander 1984, 1997) have proven difficult, mainly due to the scarcity of reliable data concerning the natural frequencies of bone fractures, survival rates, and the performance of organs after fracture healing.
Goodman and Glynn (1988) detected healed long bone fractures in 0.8% of 1025 birds of over 240 species collected in Paraguay. A much higher frequency was found in ducks, gulls, and pigeons in Britain; healed fractures were detected in 0.4% of the 11, 095 long bones (femur, tibiotarsus, tarsometatarsus, humerus, radius, ulna) examined, suggesting that 4-5% of the birds had survived long bone fractures (Brandwood et al. 1986). Even higher rates have been reported in taxonomically more restricted studies. In a sample of 17 vultures (Gyps spp.), three individuals (18%) showed healed fractures of the ulna (only wings were examined; Houston 1993), and 9% of 91 urban Blackbirds (Turdus merula) had healed long bone fractures (Lidauer 1983). The wide variance of these frequencies (0.8-18%) may be explained partly by the different habitats from which samples were taken (Lidauer 1983; Goodman and Glynn 1988). But even in the best case, the frequency of healed bone fractures in a population remains an inherently equivocal parameter: an observed frequency of healed fractures may result from a similar frequency of fracture events linked with a high survival rate, or a (much) higher fracture frequency linked with high lethality.
This impasse could be overcome if a complementary body of field observations of fracture events and healing processes were available. There are reports of individual birds surviving long bone fractures in the ornithological (Wood 1941; Abbott 1943; Dillon 1961), archaeological (Parmalee 1977; Serjeantson 2009; Atherton et al. 2012), and paleontological (Lambrecht 1933; Tasnádi-Kubacska 1962; Mlíkovský and Lukáš 1991) literature. This evidence mostly has anecdotal character, whereas analyses of the effects of healed fractures on limb performance are lacking. Pathological deformities of healed leg bones have been documented repeatedly (Tiemeier 1941; Wood 1941; Atherton et al. 2012). This is not surprising, as the immobilization of bone fragments by surrounding tissues promotes well-aligned fracture healing (Bennett and Kuzma 1992; Tully 2002); the long bones of legs lack such mechanical support. Functional consequences of the reported malalignments have not been evaluated, which is regrettable as bone fractures decrease an individual's fitness not only if the injury is fatal, but also if the performance of the repaired limb is reduced.
Here we describe the first two cases of healed but malaligned leg bone fractures in long-legged waders (Charadriiformes: Scolopacidae), which depend on bipedal locomotion for food acquisition. The types of evidence in the two cases were distinct. One bird was filmed in the wild but not captured, while the other was a skeleton in a museum collection. Nonetheless, biomechanic consequences of the malalignments for the kinematics of bipedal locomotion could be characterized in both cases through appropriate methodologies.
Willets (Tringa [Catoptrophorus] semipalmata Gmelin; Charadriiformes: Scolopacidae) were filmed (30 frames/s) on Padre Island, Texas, USA (27°26'N, 97°18'W), on 4 September 2011 (Panasonic DMC-FZ30 camera with DMW-LT55 1.7×teleconverter). Frames were extracted (QuickTimePro 7; www.apple.com/quicktime) from sequences showing animals moving perpendicularly to the viewing direction. Using objects in the birds' paths as reference points, the horizontal trajectories of each foot (tarsometatarso-phalangeal joint) and of the estimated center of mass (CM; 2 cm rostral of the center of the trunk, defined by individual coverts visible in all frames) were determined manually using ImageJ v1.45s (imagej.nih.gov/ij). In the following, we compared slow bipedal locomotion at < 0.5 m/s ('walking') with fast locomotion at > 0.9 m/s ('running'). Vertical displacements were not estimated since no unambiguous reference points for elevation above ground were available. CM speed was calculated numerically as the slope of the CM trajectory. Angular flexion of the intertarsal joints (ITJ) was measured with ImageJ.
3D scans of tibiotarsi (one malaligned) and tarsometatarsi of a Curlew (Numenius arquata L.; Charadriiformes: Scolopacidae; collected in Essex, UK, 1985; specimen SMF 499, Senckenberg Research Institute, Frankfurt/Main, Germany) were produced with an Artec Spider scanner and processed with Artec Studio v9.2.3.15 (Artec Group, Luxemburg; compare Reichert et al. 2016). This portable scanner proved particularly user-friendly as it does not require external structured light sources or laser illumination. Each bone was scanned from two opposite sides and each pair of scans was aligned using the software's Rigid Alignment tool. 3D models were computed by Fine Serial Registration, Global Registration (min. distance 10, 100 iterations) and Sharp Fusion (resolution 0.2; fill holes by radius, max. radius 5). For visualization, models exported as OBJ-files were transferred to Blender v2.6 (www.blender.org/features/2-73/). To directly compare the injured and healthy legs, bones of the handicapped right leg were mirrored over the mid-sagittal plane. ITJ flexion was animated using single bone armatures and exported as video files.
A Willet in the adult non-breeding plumage with malaligned left tarsometatarsus was observed on a sandy beach on Padre Island for 2 h before it took off and was not seen again (Fig. 1). Other Willets were present but did not congregate. Except for the limping gait (Additional file 1: Video S1), the handicapped bird behaved normally. Short periods of rest (< 12 min) on the dry upper beach alternated with foraging bouts on the lower beach, where the bird often waded in belly-deep water (Fig. 1a). The flight distance did not differ from that of its conspecifics; when walkers approached to about 15 m, the handicapped bird fled running at a speed similar to that of other Willets. When the disturbance persisted, the bird eventually took off, flew a short distance, and landed without apparent difficulties.
The rather inconspicuous behavior contrasted with the severity of the morphological abnormalities. The distal third of the left tarsometatarsus was sharply bent caudally by 70° (Fig. 1b). The functional length of the malaligned bone (distance between adjacent joints) was 77% of that of the healthy tarsometatarsus. Nonetheless, the bird at rest stood firmly on both feet (Fig. 1c), but the intertarsal joint (ITJ) was flexed more strongly in the injured leg (Fig. 1d). The modified posture affected the three forward-facing toes. At the joints between their first and second digits, the third and fourth toes were bent dorsally so that only their distal parts contacted the ground (Fig. 1d). The second toe was held straight, touching the substrate with its tip only. The posture of the toes did not change visibly when the foot was in the air (Additional file 1: Video S1), suggesting restricted toe joint mobility. In contrast, the toes of the healthy foot clubbed together and bent backwards during the leg's swing phase, as in healthy willets (not shown).
Willets increased walking speed by making longer strides in faster succession (Fig. 2 shows representative gait kinematics of a healthy animal at 0.38 and 1.21 m/s). This was true also for the handicapped Willet, which moving at 0.25 and 1.20 m/s showed stride lengths (distance between successive contact points of one foot) of 20.5 and 36.8 cm, respectively, and step cycle frequencies of 1.2 and 3.2 per second, respectively (Fig. 3a, c). Healthy Willets decreased the duty factor (proportion of time a foot has contact with the ground) with increasing speed (Fig. 2b, d). The healthy right foot of the handicapped Willet showed this decrease in duty factor at higher speed as well, while the duty factor of the injured foot was similar in the two speeds analyzed (Fig. 3b, d).
Right and left step lengths (distance between the initial contact of one foot and the initial contact of the opposite foot) were equal in healthy Willets regardless of speed, so that the step-size ratio was 1 (Fig. 2a, c). The duty factors were similar in both feet (Fig. 2b, d). The speed of the estimated center of mass (CM) showed small-amplitude oscillations with maxima occurring when one foot entered the swing phase while the other entered the stance phase (Fig. 2a, c). In the walking (0.25 m/s) handicapped Willet, right steps were 2.5 times longer than left steps, and CM speed oscillated strongly with peaks at the end of the swing phase of the healthy leg only (Fig. 3a). In the malformed left leg, the duty factor was significantly lower compared to the healthy right leg (Fig. 3b). The differences between the legs were less pronounced when the animal was running (1.2 m/s), as the duty factors became similar in both legs (Fig. 3d), right steps were only 30% longer than left steps, and CM speed showed alternating large and small maxima that coincided with the start of the swing phases of the left and right leg, respectively (Fig. 3c).
Healthy Willets at high speed exhibited an ITJ flexion angle minimum of about 90° during the swing phase and a less pronounced secondary minimum of 130°-140° in the stance phase (Fig. 2d). At lower speed, the secondary minimum tended to disappear, and the proportion of the step cycle during which the ITJ was strongly flexed decreased, as expected since this flexion corresponded to the swing phase (Fig. 2b). In the handicapped Willet at high speed, the ITJ of the injured leg was flexed more strongly by about 20° than the ITJ of the healthy leg in the corresponding phases (Fig. 3d); otherwise, the cycles resembled those of healthy birds. At low speed, the healthy leg showed a relatively shortened ITJ flexion phase and no relative minimum in the stance phase (Fig. 3b), similarly as in healthy birds (Fig. 2b). In contrast, the extended and flexed phases were of similar duration in the injured leg.
Motivated by our above observations, we searched the Senckenberg collection for healed leg bone fractures in the skeletons of long-legged Scolopacidae. Among 60 skeletons of Tringa, Numenius, and Limosa, we found one Curlew whose right tibiotarsus showed a malaligned healed fracture about one-third of the total bone length from its distal end (Fig. 4a). The rest of the skeleton was without apparent pathologies. The healed fracture was thickened but consisted of solid bone material with a smooth surface. The thickened bone portion was penetrated by a canal of about 1 mm diameter, which also had a solid inner surface (Fig. 4a).
Direct measurement indicated a reduction of the functional length of the tibiotarsus by 5% compared to the unaffected leg. For further analyses, in silico models were used (Additional file 3: 3D model S1, Additional file 4: 3D model S2), which enabled manipulations impossible to perform with actual bones such as mirroring and superposition (as seen in Fig. 4b‒g). The axis of the malaligned bone was bent medially by about 34° at the fracture site. The plane of bending (i.e. the plane defined by the three reference points: knee, ITJ, and the kink in the bone) formed an angle of 30° with the sagittal plane. Thus, the distal parts of the right leg were expected to project inwards into the plane of movement of the left leg, which would have made bipedal locomotion practically impossible. This, however, did not occur as the rotation of the bending plane relative to the sagittal plane was more than balanced by a ~50° lateral rotation around its long axis of the distal fragment of the malaligned tibiotarsus with respect to the proximal fragment. The ultimate consequence of these geometric changes was a lateral rotation of the plane of ITJ flexion in the right leg by some 40° relative to the mid-sagittal plane (Fig. 4b‒g, Additional file 2: Video S2). Thus, when the ITJ was flexed, the right foot moved lateral, i.e. in an outward direction, from the plane in which ITJ flexion normally occurs.
We analyzed malaligned long bones in the legs of two waders. In the Willet, the behavior of the bird in the wild was documented, and anatomical information had to be derived from photographs. In the Curlew, the anatomy of the malformed bone could be examined and its function modeled, whereas behavioral consequences could only be inferred. Nonetheless, the two sets of information support similar conclusions.
Although the wild Willet's deformed limb could not be examined, a fracture is the most plausible explanation for its anatomical aberration. Following a fracture, the distal bone fragment probably was fixed during the healing process in the observed position by the pull of the tendons that connect the toes to more proximally located muscles. Since these tendons are running mainly along the caudal side of the tarsometatarsus (Stolpe 1932; Hudson 1937), they must have exerted asymmetric forces on the leg distal of the fracture. The smoothly rounded rather than sharply kinked caudal surface of the limb at the fracture site supports this idea (Fig. 1b, d). In this interpretation, the anatomical and functional changes observed in the toes appear as secondary responses to the requirements of the modified biomechanic apparatus.
Walking birds accelerate by increasing step cycle frequency and stride length simultaneously (Gatesy and Biewener 1991; Gatesy 1999; Reilly 2000; Abourachid 2001; Rubenson et al. 2004; Nudds et al. 2010; Nyakatura et al. 2012). Since birds increase cycle frequency by shortening the stance phase at constant swing phase, the duty factor decreases with increasing speed. These kinematic characters were evident in healthy Willets, too (Fig. 2a, c). Moreover, the ITJ flexing cycles of Willets (Fig. 2b, d) resembled those reported from other birds (Stoessel and Fischer 2012; Nyakatura et al. 2012). Thus, Willets exhibited typical kinematics of avian bipedal locomotion, and the aberrations in the handicapped individual (Fig. 3) may represent general responses of the biomechanic system 'bipedal bird' to injuries of the type described. The deviations from normal gait kinematics in the handicapped bird were more strongly expressed at low (Fig. 3a, b) than at high (Fig. 3c, d) velocity. Apparently, the bird's momentum at higher speed enabled it to maintain an almost symmetric gait. It would be interesting if case studies of other species became available for comparison.
Willets in the region at the time of observation mostly are winter residents and migrants. Given the handicapped bird's inconspicuous foraging and flight behavior, it appears possible that it was migrating successfully. More severe effects may have been caused by its inability to fold the toes of the handicapped leg during the leg's swing phase. Healthy Willets (not shown) and other Scolopacidae (Wortmann 1972: 281) club the toes together and bend them backwards while the foot is in the air. This appears to prevent entanglements of the feet with objects on the ground (Wortmann 1972: 335). If so, the handicapped Willet's ability to move swiftly on vegetation-covered surfaces probably was compromised (compare Bergman 1946: 20), which may have caused the bird to forage mostly on vegetation-free ground. We observed the bird foraging only on surfaces without vegetation, but, unfortunately, the period of observation was too short to justify general conclusions concerning foraging behavior. On the other hand, spread toes certainly generate more drag than clubbed ones, and wading in water must have been more difficult for the handicapped bird than for its healthy conspecifics—but it did not seem to avoid wading at all (Fig. 1a).
In the case of the Curlew, conclusions concerning the functional and behavioral consequences of the healed injury had to be derived from the structure of the affected bone. The solid bone material at the fracture site indicated secondary bone healing with completed callus ossification (Roggemann 1930; Bennett and Kuzma 1992). Evidently, the bird had lived long enough for the fracture to heal fully. An intriguing feature was the canal that extended through the healed fracture (Fig. 4a). Since the inner surface of this canal consisted of solid bone without opening into the inner bone cavity, we can exclude that it was generated post mortem. The structure could be explained by the loss of a non-viable bone fragment, a frequent result of leg bone trauma in birds (Bennett and Kuzma 1992; Tully et al. 1996).
To evaluate the functionality of the malaligned tibiotarsus, we applied modeling techniques based on optical 3D scanning, which we had optimized for biological applications in unrelated contexts (Reichert et al. 2016, 2017). 3D models in silico possess significant analytical advantages. Models can be more easily aligned precisely with defined planes and axes than actual bones, and the measurement of distances, surface areas, volumes, and angles is straightforward. In silico models enable manipulations that are impossible with real objects, including mirroring over freely defined planes and the superposition of objects in space (compare Fig. 4). We used 3D models to visualize the combined results of the two main geometric features of the deformed tibiotarsus, namely the angular malalignment characterized by the plane of bending of the kink in the bone, and the rotational malalignment of the distal tibiotarsus fragment (Fig. 4; Additional file 2: Video S2). Our analysis showed that the right foot moved outward, away from the mid-sagittal plane, every time the bird flexed its right ITJ to make a step. This must have impeded bipedal locomotion in dense vegetation. However, in the living Curlew the effect may have been balanced partially by long-axis rotation of the femur and/or tibiotarsus, a frequently overlooked type of movement (Kambic et al. 2014). Unfortunately, we lack the necessary information to evaluate this possibility quantitatively.
The unexpected observations of healed but malaligned leg bones in two wader species that depend on terrestrial locomotion for food acquisition demonstrates that leg fractures are not necessarily fatal in these animals, even if severe deformities occur. The severe angular malalignment of the Willet's tarsometatarsus caused a limping gait most pronounced at low walking speed and an inability to club the toes of the affected leg together. The combined angular and axial malalignment of the Curlew's tibiotarsus caused a lateral rotation of the foot when it was lifted. In both cases, a reduced ability to move swiftly through dense vegetation was inferred. Both species utilize vegetated ground, particularly during the breeding season, but also forage on flat surfaces devoid of vegetation, such as mud flats and beaches. It seems plausible that the handicapped birds minimized the impact of their deformities by shifting an even higher proportion of their activities to vegetation-free habitats.
While the nature of the available evidence was distinct for the Willet and the Curlew, insights into the effects of the injuries on locomotory kinematics were gained in both birds through relatively simple, inexpensive methods—kinematic analysis of videos taken with standard digital cameras of animals in the wild, and optical 3D scanning followed by in silico modeling of affected bones. The routine application of these methods to similar cases will augment our knowledge base of non-lethal bone fractures in the wild, which can be expected to promote our understanding of skeleton evolution (Alexander 1984).
Additional file 1: Video S1. Video-clip (.mov format) of a Willet with malaligned left tarsometatarsus walking and running on a beach on Padre Island, Texas, USA.
Additional file 2: Video S2. Video-clip (.mov format) showing the kinematics of intertarsal joints in the healthy and malaligned leg of a Curlew.
Additional file 3: 3D model S1. 3D models of the tibiotarsus and tarsometatarsus of the healthy left and the malaligned right leg of a Curlew with expanded intertarsal joint. The right leg is mirrored to facilitate direct comparison of the two legs. The models are in the polygon file format (.ply) and can be displayed by standard software such as the free, open source MeshLab (meshlab.sourceforge.net/).
Additional file 4: 3D model S2. As 3D model S1, but with flexed intertarsal joint.
JR scanned the curlew bones, which had been discovered in the Senckenberg collection by GM, and performed the 3D modeling. WSP filmed the willet, analyzed its gait kinematics, coordinated this research, and drafted the manuscript, which was discussed, improved, and finalized by all authors. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.
All data generated and/or analyzed during this study are included in this published article and its supplementary information files.
|
