Xinsen Wei, Zihui Zhang. 2021: Femoral mechanical performance of precocial and altricial birds: a simulation study. Avian Research, 12(1): 18. DOI: 10.1186/s40657-021-00253-w
Citation: Xinsen Wei, Zihui Zhang. 2021: Femoral mechanical performance of precocial and altricial birds: a simulation study. Avian Research, 12(1): 18. DOI: 10.1186/s40657-021-00253-w

Femoral mechanical performance of precocial and altricial birds: a simulation study

Funds:

National Natural Science Foundation of China 31471951

More Information
  • Corresponding author:

    Zihui Zhang, zihuizhang@cnu.edu.cn

  • Received Date: 04 Jan 2021
  • Accepted Date: 17 Apr 2021
  • Available Online: 24 Apr 2022
  • Publish Date: 23 Apr 2021
  • Background

    As the major load-bearing structures, bones exhibit various properties related to mechanical performance to adapt to different locomotor intensities. The habits and ontogenetic changes of locomotion in animals can, thus, be explored by assessing skeletal mechanical performance.

    Methods

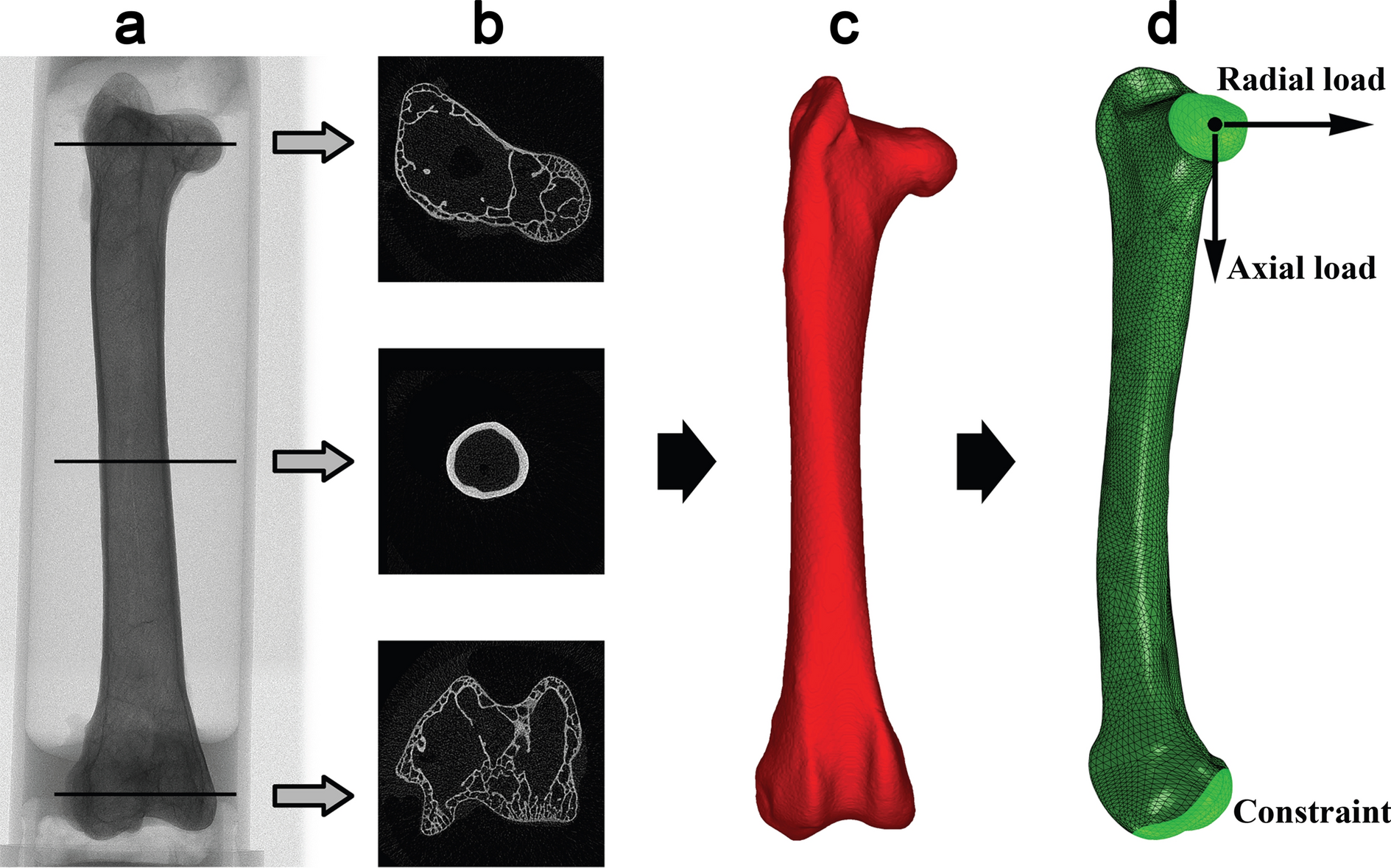

    In this study, we investigated the growing femoral mechanical performance in an ontogenetic series of Cabot's Tragopans (Tragopan caboti) and Pigeons (Columba livia domestica). Micro-computed tomography-based finite element analysis was conducted to evaluate the stress, strain, and strain energy density (SED) of femora under axial and radial loading.

    Results

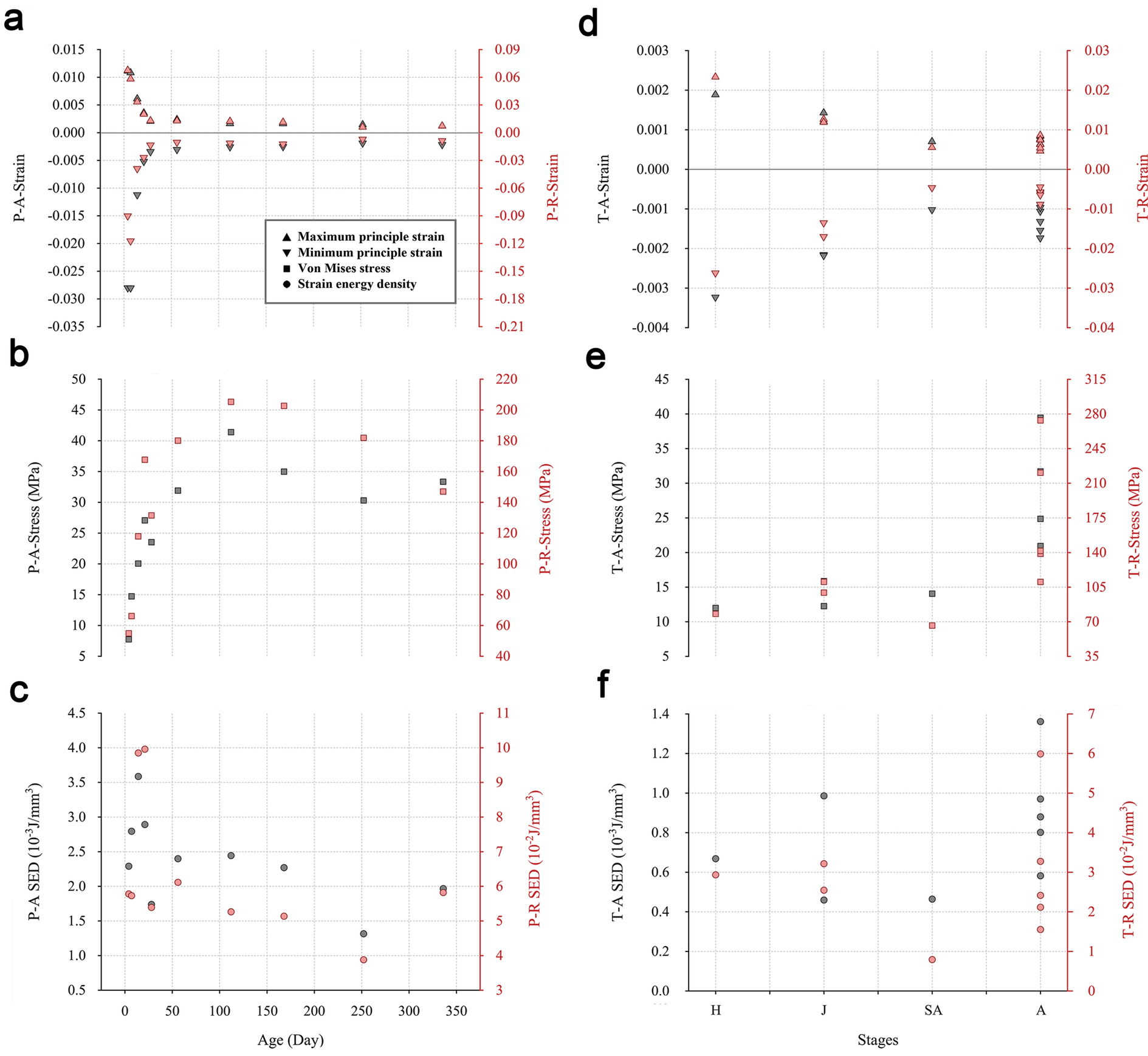

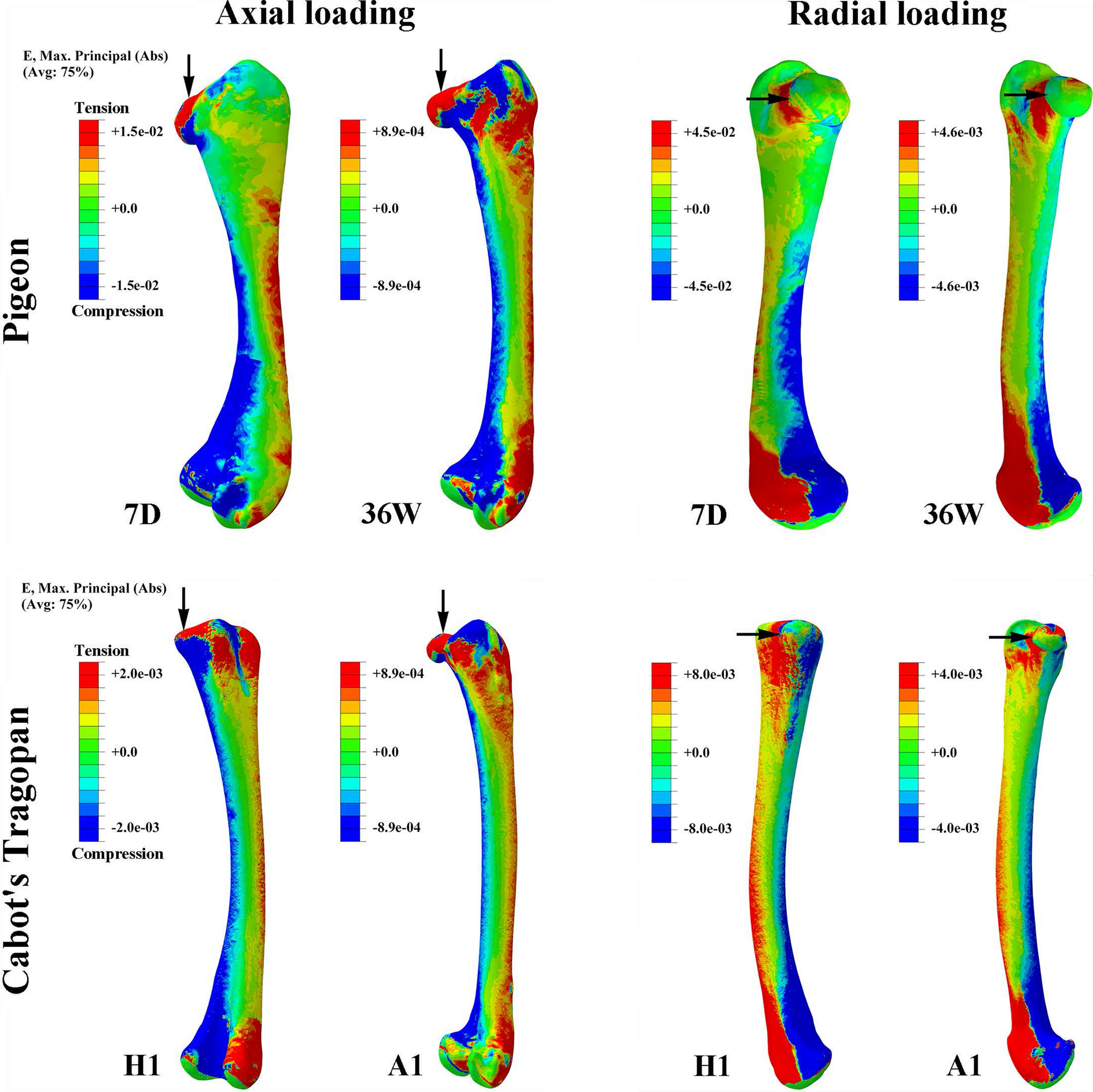

    Femora deflected medio-laterally and dorso-ventrally under axial and radial loading, respectively. Femora deformed and tensed more severely under radial loading than axial loading. In adult individuals, Cabot's Tragopans had lower strain and SED than pigeons. During ontogeny, the strain and SED of pigeons decreased sharply, while Cabot's Tragopans showed moderately change. The structural properties of hatchling pigeons are more robust than those of hatchling Cabot's Tragopans.

    Conclusions

    Limb postures have dominant effect on skeletal deformation. The erect posture is preferred by large mammals and birds to achieve a high safety factor of bones during locomotion. Adult Cabot's Tragopans have stronger femora than pigeons, reflecting a better bone adaption to the terrestrial locomotion of the studied pheasant species. Changes in strain and SED during growth reflect the marked difference in locomotor ability between precocial and altricial hatchlings. The femora of hatchling Cabot's Tragopans were built with better energy efficiency than deformation resistance, enabling optimized mechanical performance. In contrast, although weak in mechanical function at the time of hatching, pigeon femora were suggested to be established with a more mature structural design as a prerequisite for rapid growth. These results will be helpful for studies regarding developmental patterns of fossil avian species.

  • Some bird species are known to dismantle materials from old nests for re-nesting (Sedgwick and Knopf, 1988; Kershner et al., 2001) as well partaking in kleptoparasitism of nesting material from active nests (Jones et al., 2007; Slager et al., 2012). The Hair-crested Drongo (Dicrurus hottentottus) tends to reuse materials from failed nests to re-nest, but also exhibits a non-typical behavior by dismantling their own nest after the young have fledged (Li et al., 2009). Li et al. (2009) proposed that nest dismantling was an adaptive behavior to increase fitness by reducing the risk of predation, reducing competition for nesting sites, or both. Such adaptations are complex and sometimes could be explained by other hypotheses.

    Parasitic and non-parasitic invertebrates can take refuge in the nests of birds (Woodroffe, 1953). Some of these invertebrates are already present in the vegetation used for nesting material, thus using the vegetation as their refugia and food source; however some will use the birds as their host (Merino and Potti, 1995; Brown et al., 2001) and are introduced into the nest via nesting birds. Often ectoparasites play a negative role on the avian species they utilize (Merino and Potti, 1995; Brown et al., 2001). Birds may avoid inhabiting parasite infested areas, and can develop ways to either eliminate or avoid recruiting parasites (Hart, 1990). The role of parasites has even been responsible for other adaptations such as preening (Marshall, 1981; Clayton, 1991; Cotgreave and Clayton, 1994). In the case of the Haircrested Drongo, the question can be made if this unique nest dismantlement behavior is an adaptation to control parasite populations, which may otherwise have a negative effect in the fitness of the species. Parasite control may be needed since drongos often nest in the same tree and even on the same branch used from previous nesting periods (Li et al., 2009).

    To our knowledge, there has never been any formal macro or microscopic evaluations of Hair-crested Drongo nests. Our objectives in this study were to document the presence of parasitic and non-parasitic invertebrates within the nests of Hair-crested Drongos using funneling techniques in a field setting. This study was designed to further the ongoing study of drongo's nest dismantling behavior. Though this study was not designed to test any formal hypotheses, our goal was to provide the basic ground work for future hypothesis testing that could possibly help explain the nest dismantling behavior.

    This study was conducted at Dongzhai National Nature Reserve (31.95°N, 114.25°E), which is located in the Dabieshan Mountains of Henan Province of central China (Li et al., 2009). The reserve is located in the transitional area of subtropical and temperate zones. The study was conducted at Baiyun Station, which is located within the Reserve. Dongzhai National Nature Reserve is known for its high avian diversity (over 300 species) and was established initially as a bird reserve (Song and Qu, 1996). The Hair-crested Drongo is a common bird throughout much of southeast Asia and is known to breed in central and northern China (Zheng, 2011). The Hair-crested Drongo is a migratory species arriving at the study site to in April, with the breeding season lasting till early August (Li et al., 2009).

    Invertebrates, including parasites were sampled from collected nests of the Hair-crested Drongos. Nests were removed by cutting their main support branch after the nests became inactive and prior to the nest being dismantled by adults. Upon collection, macroscopic evaluations of ten nests were conducted to determine if any invertebrates were visible to the naked eye. Following macroscopic evaluation, the eight of the collected nests were bagged to make sure there was no outside contamination. Nests were first sampled using the Berlese funneling technique (Berlese, 1905; Nolan, 1955; Brown et al., 2001), with the sampling methodology being modified after two collections because of contamination issues. Originally, nests were put directly under a lamp, with a funnel placed directly underneath the nest to direct invertebrates into a sterile vial containing an alcohol solution (70% ethyl alcohol, 30% H2O) for at least 24 hours, with nests being tapped to dislodge possible invertebrates from the nest and into the funnel. The modified sampling technique entailed taking the bagged nest and securing the funnel and vial through a hole in the bottom of the bag by tape to prevent any escape or entry of invertebrates. These modified funnels were then placed outside in an open area receiving direct sunlight for approximately 36 hours, and were set up so that the majority of this time was during daylight hours. Samples were not collected during rain events or in untypical cloud cover. Vials were labeled for identification and taken back to Beijing Normal University laboratories for evaluation. Because our goal was not to quantify the amount of parasites/invertebrates present, we only documented the presence/absence during macro and microscopic evaluations.

    A total of 10 nests were observed macroscopically, and 8 of these were sampled microscopically (2 Berlese, and 6 modified funneling technique). It was immediately evident that the light used in the standard Berlese funneling technique acted as a visual lure (Neethirajan et al., 2007), thus attracted several flying insects and contaminated the first two nest microscopic evaluations. Using the modified funneling technique reduced the contamination by other insects, and using the energy of the sun proved to be a more effective and efficient method under field conditions. Due to high diversity of insects and difficulty identifying each species, collected invertebrates were identified down to the taxonomic class, order, or family level. Macroscopic observation showed that lice (order: Phthiraptera) were present in the majority of the nests, and an unidentified larvae and chrysalis were observed. Microscopic evaluations showed that parasites and other invertebrates were present within the nests (Table 1). Lice, adult and larvae rove beetles (family: Staphylinidae), springtails (class: Collembola), and of ticks (family: Ixodidae) were observed. One nest yielded rove beetles, another separatenest had springtails, and 2 nests contained ticks. Lice were present in all samples.

    Table  1.  Presence and frequency of parasitic and non parasitic invertebrates in six nests of Hair-crested Drongos at Dongzhai National Nature Reserve, Henan, China
    Nest number Lice Phthirapteraa Springtails Collembolaa Rove Beetles Staphylinidaea Ticks Ixodidaea
    1
    2
    3
    4
    5
    6
    Frequency (%) 100 17 17 33
    a Taxonomic descriptions represents the closest class, order, or family species that were able to be identified.
     | Show Table
    DownLoad: CSV

    Though our research objectives were not to test methodology efficiency, much was learned about the methodology to conduct such research and could benefit similar studies in the future. In this case, modifications had to be made in order to achieve research objectives. The modified funneling technique used in this study could prove to be useful in areas where laboratories are not available, or in areas where local surroundings cannot be controlled. Our modified funneling technique shows that such research can be done using limited resources coupled with natural resources (i.e., sunlight) to produce results. Though the use of sunlight for funneling techniques is not a new concept (Bondy, 1940), this is the first time such an application has been used for investigating invertebrate and avian nest relationships.

    We found that several parasitic and non-parasitic invertebrates do inhabit the nests of Hair-crested Drongos. Rove beetles belong to the family Staphylinidae, which is one of the largest and most diverse beetle families in the world and are known to inhabit the nests of many different taxa (see Klimaszewski et al., 1996). Rove beetles have been found to play different roles in avian nests depending on the beetle species (Majka et al., 2006). Certain rove beetles will feed on the vegetative material found in nests while some will feed on other invertebrates, including parasites, which in turn could be beneficial to bird species by reducing parasitic loads (Majka et al., 2006). The proportion of rove beetles in the nests of Hair-crested Drongos found in this study (17%) is comparable to the proportion found in the nests of Great Tits (Parus major) (13%) (Heeb et al., 2000). Because of the high diversity found in Staphylindae coupled with the lack of this type of research in this region, the possibility of the rove beetle species detected in this study being new unidentified species is likely, or could exhibit new geographic extensions of certain species. Majka et al. (2006) found 14 different beetle species in owl nests in Nova Scotia, Canada, many of which were new records demonstrating geographic range extensions, and some were first time recordings from bird nests. Majka et al. (2006) also found that 8 of the 14 species beetles found belonged to the family Staphylinidae.

    Springtails were another invertebrate detected within the nests of Hair-crested Drongos. Pung et al. (2000) found that springtails were found in 5% of Red-cockaded Woodpecker (Picoides borealis) nests. Though our results show a higher frequency of springtails (17%), this could be attributed to our low sample size, geographic variation, or could further demonstrate the variability of arthropod community structure within avian nests. Furthermore, Pung et al. (2000) found a lower frequency of springtails but detected 11 other types of arthropods, including six different types of mites, thus having a higher diversity of arthropods than what was found in our study.

    The presence of parasites, such as lice and ticks, has been well documented to have host relationships with avian species, however most researches focus on the presence of such species that use the actual bird species as a host rather than the in the nest. It is important to understand what effect these invertebrates have on certain aspects of avian biology such as the nest site selection, adult survivorship, and overall fitness of a species. Lice have shown to reduce the survival in Feral Pigeons (Colomba livia) by increasing the energy needed for thermoregulation (Clayton et al., 1999). Parasites have played a role in the adaptation of preening behavior of birds, in which preening serves as a way to control harmful ectoparasites (Marshall, 1981; Clayton, 1991; Cotgreave and Clayton, 1994). The presence of parasites can cause the avoidance of nesting sites (Chapman, 1973; Brown and Brown, 1986; Loye and Carroll, 1991) and can even cause nest and nestling abandonment (Duffy, 1983; Calyton and Moore, 1997). The frequency of lice on live hosts or in nests is species specific (both avian and louse). Rozsa et al. (1996) found that five species of lice were found on both Hooded Crows (Corvus corone cornix) and Rooks (C. frugilegus), however the frequency was different between species with 53% of Hooded Crows and 92% of Rooks being infested. Furthermore, Rozsa et al. (1996) found Rooks to have higher lice richness, diversity, and loads, in which they contribute some of these differences to be associated with the community structure of these species with rooks being colonial and Hooded Crows being more solitary. Pung et al. (2000) only found louse in 2% of Red-cockaded Woodpecker nests. All of these findings discussed indicate the variability and complexity of invertebrate-avian host relationships.

    Several studies have shown that territory may be more of a factor in nest site selection rather than decreased nest quality (see Loye and Carroll, 1998). In the case of the Hair-crested Drongo, the main supporting hypothesis as to explain the nest-dismantling behavior is that this species dismantles its nest to reduce competition for breeding sites and to increase species fitness. Having ectoparasitic present in the nests of Haircrested Drongos certainly supports the plausibility that other behaviors, such as nest-dismantling could have been adapted to control such parasites. Even though, we do not propose the nest dismantling behavior is strictly driven by the presence of parasitic and non-parasitic invertebrates, we do suggest it may be a surrogate factor, and could warrant further investigation. Further investigations into whether or not parasites in the nests have any effects on nest site selection, rate of nest dismantlement, and fitness of this species would further benefit what we know about the Hair-crested Drongo.

    We appreciate the support by Dongzhai National Nature Reserve for conducting this study. Funding and support was provided by National Science Foundation East Asia Pacific Summer Institute (EAPSI), Chinese Ministry of Science and Technology, and China Science and Technology Exchange Center. Further funding and support was provided by Alabama A & M University and Beijing Normal University. Thanks to Luis BIANCUCCI, Matthew LEROW, Peng ZHANG, Chang GAO, Ji LUO, Yang LIU, and Langyu GU, for their assistance in and out of the field.

  • Abourachid A, Hackert R, Herbin M, Libourel PA, Lambert F, Gioanni H, et al. Bird terrestrial locomotion as revealed by 3D kinematics. Zoology. 2011;114: 360–8.
    Alexander RM. Principles of animal locomotion. Princeton: Princeton University Press; 2003.
    Alexander RM, Jayes AS, Maloiy GMO, Wathuta EM. Allometry of the limb bones of mammals from shrews (Sorex) to elephant (Loxodonta). J Zool. 1979a;189: 305–14.
    Alexander RM, Maloiy GMO, Njau R, Jayes AS. Mechanics of running of the ostrich (Struthio camelus). J Zool. 1979b;187: 169–78.
    Alexander RM, Ker RF, Bennett MB. Optimum stiffness for leg bones. J Zool. 1990;222: 471–8.
    Arias-Moreno AJ, Ito K, van Rietbergen B. Accuracy of beam theory for estimating bone tissue modulus and yield stress from 3-point bending tests on rat femora. J Biomech. 2020;101: 109654.
    Biewener AA. Bone strength in small mammals and bipedal birds: do safety factors change with body size? J Exp Biol. 1982;98: 289–301.
    Biewener AA. Scaling body support in mammals: limb posture and muscle mechanics. Science. 1989;245: 45–8.
    Biewener AA. Biomechanical consequences of scaling. J Exp Biol. 2005;208: 1665–76.
    Biewener AA, Taylor CR. Bone strain: a determinant of gait and speed? J Exp Biol. 1986;123: 383–400.
    Biewener AA, Swartz SM, Bertram JE. Bone modeling during growth: dynamic strain equilibrium in the chick tibiotarsus. Calcif Tissue Int. 1986;39: 390–5.
    Bishop PJ, Hocknull SA, Clemente CJ, Hutchinson JR, Barrett RS, Lloyd DG. Cancellous bone and theropod dinosaur locomotion Part II—a new approach to inferring posture and locomotor biomechanics in extinct tetrapod vertebrates. PeerJ. 2018;6: e5779.
    Carrier DR. Ontogenetic limits on locomotor performance. Physiol Zool. 1996;69: 467–88.
    Carrier DR, Auriemma J. A developmental constraint on the fledging time of birds. Biol J Linn Soc. 1992;47: 61–77.
    Carrier DR, Leon LR. Skeletal growth and function in the California gull (Larus californicus). J Zool. 1990;222: 375–89.
    Carter DR. Mechanical loading histories and cortical bone remodeling. Calcif Tissue Int. 1984;36(Suppl 1): S19-24.
    Carter DR, Fyhrie DP, Whalen RT. Trabecular bone density and loading history: regulation of connective tissue biology by mechanical energy. J Biomech. 1987;20: 785–94.
    Clark J, Alexander RM. Mechanics of running by quail (Coturnix). J Zool. 1975;176: 87–113.
    Cosman MN, Britz HM, Rolian C. Selection for longer limbs in mice increases bone stiffness and brittleness, but does not alter bending strength. J Exp Biol. 2019.
    Cracraft JL. The functional morphology of the hind limb of the domestic pigeon, Columba livia. Bull Am Mus Nat Hist. 1971;144: 171–268.
    Crawford RP, Cann CE, Keaveny TM. Finite element models predict in vitro vertebral body compressive strength better than quantitative computed tomography. Bone. 2003;33: 744–50.
    Currey JD. What determines the bending strength of compact bone? J Exp Biol. 1999;202: 2495–503.
    Currey JD. Bones: structure and mechanics. Princeton: Princeton University Press; 2002.
    Currey JD. How well are bones designed to resist fracture. J Bone Miner Res. 2003;18: 591–8.
    Dial KP, Greene E, Irschick DJ. Allometry of behavior. Trends Ecol Evol. 2008;23: 394–401.
    Doblaré M, Garcı́a JM, Gómez MJ. Modelling bone tissue fracture and healing: a review. Eng Fract Mech. 2004;71: 1809–40.
    Doube M, Kłosowski MM, Arganda-Carreras I, Cordelières FP, Dougherty RP, Jackson JS, et al. BoneJ: free and extensible bone image analysis in ImageJ. Bone. 2010;47: 1076–9.
    Dumont ER, Grosse IR, Slater GJ. Requirements for comparing the performance of finite element models of biological structures. J Theor Biol. 2009;256: 96–103.
    Eberle S, Göttlinger M, Augat P. Individual density-elasticity relationships improve accuracy of subject-specific finite element models of human femurs. J Biomech. 2013;46: 2152–7.
    Erickson GM, Catanese J III, Keaveny TM. Evolution of the biomechanical material properties of the femur. Anat Rec. 2002;268: 115–24.
    Gatesy SM. Guineafowl hind limb function. I: cineradiographic analysis and speed effects. J Morphol. 1999;240: 115–25.
    Gere JM. Mechanics of materials. Pacific Grove: Brooks/Cole Thomson Learning; 2001.
    Goetz JE, Derrick TR, Pedersen DR, Robinson DA, Conzemius MG, Baer TE, et al. Hip joint contact force in the emu (Dromaius novaehollandiae) during normal level walking. J Biomech. 2008;41: 770–8.
    Hedenström A, Rosén M. Predator versus prey: on aerial hunting and escape strategies in birds. Behav Ecol. 2001;12: 150–6.
    Helgason B, Perilli E, Schileo E, Taddei F, Brynjólfsson S, Viceconti M. Mathematical relationships between bone density and mechanical properties: a literature review. Clin Biomech. 2008;23: 135–46.
    Herrel A, Gibb AC. Ontogeny of performance in vertebrates. Physiol Biochem Zool. 2006;79: 1–6.
    Jepsen KJ, Silva MJ, Vashishth D, Guo XE, van der Meulen MC. Establishing biomechanical mechanisms in mouse models: practical guidelines for systematically evaluating phenotypic changes in the diaphyses of long bones. J Bone Miner Res. 2015;30: 951–66.
    Main RP, Biewener AA. Skeletal strain patterns and growth in the emu hindlimb during ontogeny. J Exp Biol. 2007;210: 2676–90.
    Morgan EF, Bouxsein ML. Use of finite element analysis to assess bone strength. BoneKEy-Osteovision. 2005;2: 8–19.
    Olea G, Hernando A, Lombardo D. Heterochronic events in the ontogeny of Columba livia, Coturnix coturnix and Gallus gallus domesticus. Rev Colomb Cienc Pecu. 2016;29: 274–82.
    Pelker RR, Friedlaender GE, Markham TC, Panjabi MM, Moen CJ. Effects of freezing and freeze-drying on the biomechanical properties of rat bone. J Orthop Res. 1984;1: 405–11.
    Rayfield EJ. Finite element analysis and understanding the biomechanics and evolution of living and fossil organisms. Annu Rev Earth Planet Sci. 2007;35: 541–76.
    Rayfield EJ. What does musculoskeletal mechanics tell us about evolution of form and function in vertebrates? In: Bels V, Whishaw I, editors. Feeding in vertebrates. Berlin: Springer; 2019. p. 45–70.
    Ricklefs RE. Adaptation, constraint, and compromise in avian postnatal development. Biol Rev Camb Philos Soc. 1979a;54: 269–90.
    Ricklefs RE. Patterns of growth in birds. V. A comparative study of development in the starling, common tern, and Japanese quail. Auk. 1979b;96: 10–30.
    Ruff CB, Holt B, Trinkaus E. Who's afraid of the big bad Wolff?: "Wolff's law" and bone functional adaptation. Am J Phys Anthropol. 2006;129: 484–98.
    Stoessel A, Fischer MS. Comparative intralimb coordination in avian bipedal locomotion. J Exp Biol. 2012;215: 4055–69.
    Wang L, Wei XS, Liang XX, Zhang ZH. Ontogenetic changes of hindlimb muscle mass in Cabot's tragopan (Galliformes, Phasianidae) and their functional implications. Anat Rec. 2021.
    Wei X, Zhang Z. Ontogenetic changes of geometrical and mechanical characteristics of the avian femur: a comparison between precocial and altricial birds. J Anat. 2019;235: 903–11.
    Wen Z, Zheng G. Artificial raising and breeding of Cabot's Tragopan (Tragopan caboti). Chin J Zool. 1998;33: 22–7 (in Chinese).
